Pelletbrenner BURNiT Pell Eco 35, 5-35kW

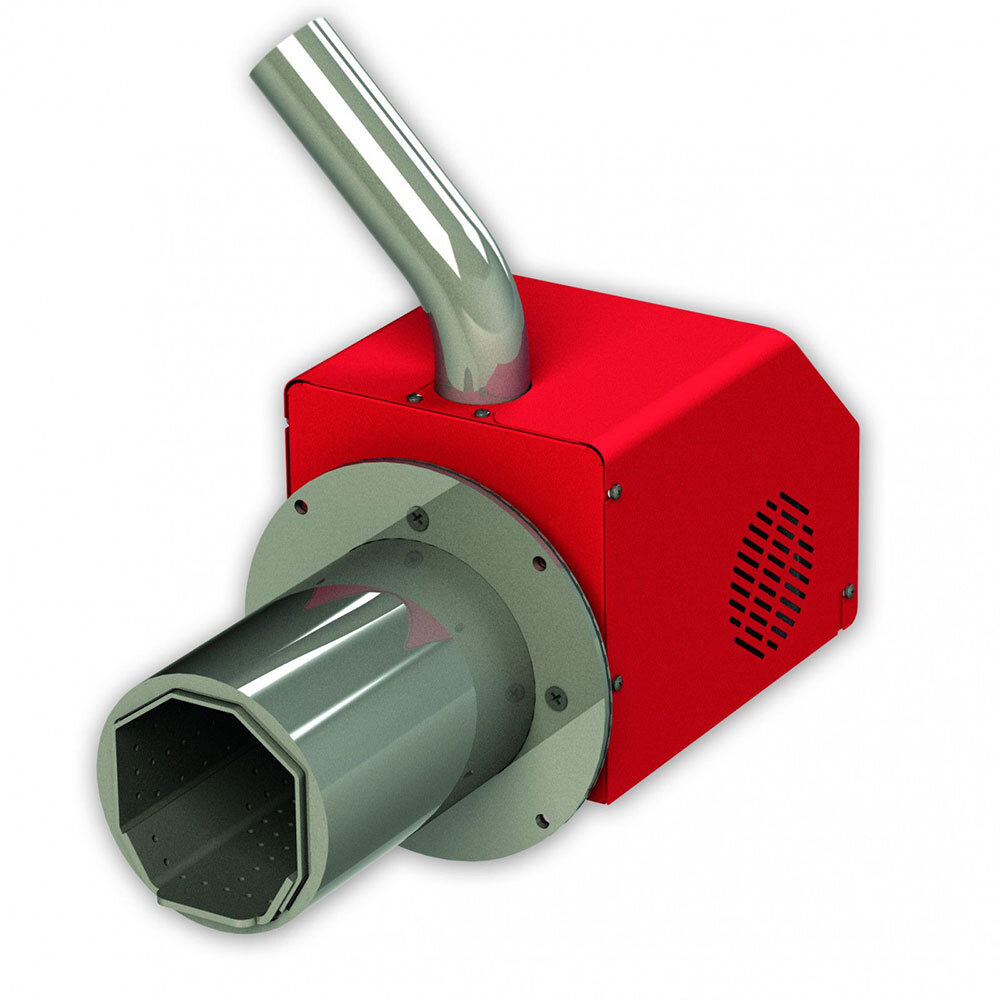

The BURNiT Pell Eco is a pellet burner for heating boilers. It burns wood-pellets with diameter 6-8 mm. It ensures an efficient and low-emission combustion. Produced of high-grade stainless steel, it withstands temperatures up to 1000°С. The built-in CPU-controlled unit manages the burner operation for optimum efficiency and ecological burning process.

Product Features

• Built-in control unit:

  1) fully automated ignition and pellet feed;
  2) controls the operation of  the circulation pump of the central heating;
  3) controls the operation of the pump of the domestic hot water;
  4) option for control by room thermostat;
  5) timer;
Photo sensor -  monitors the power of the burner flame Internal auger

• The feeder chute allows 360° rotation for its best convenient positioning when connecting the pellet auger to the hopper
• Dry contactless resistance heater assuring ignition of fuel

 Innovative cleaning system of the combustion chamber

• Air feed fan, step-regulated  (0% ÷100 %)

Safety devices:

1) Elbow-shape feeder chute prevents backfire entry from burner into pellet hopper;
2) Thermostatic protection 80°С . When the surface of the feeder chute reaches 80°С, the control stops the feeding of pellets into the burner and signals for fault Fuse 3,15 А;
3) In case of power interruption, all parameter settings are stored in the memory of the controller.
4) Upon the subsequent restart of the burner, the controller resumes the execution of the program from the point when the power interruption occurred.
